Magnum Panel for Four MS-PAE Inverters - 175A DC, Dual 30A AC

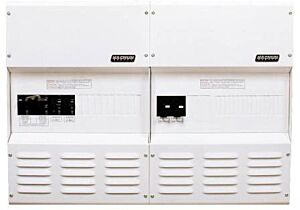

Magnum Panel MPDH175-30D for Four Inverters
Note: Out of the box, this Magnum panel will accommodate only two MS-PAE inverters. If you plan to use it for four MS-PAE inverters stacked in parallel, you will also need the optional MPX extension boxes, the MPXD175-30D-L and MPXD175-30D-R.

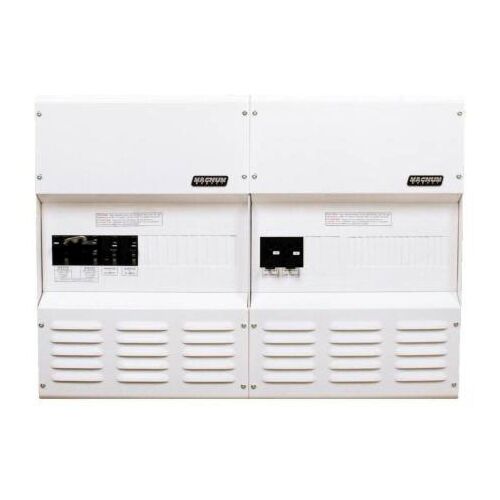

Note: Picture #2 shows the MPDH175-30D with all the installed options.
The MP (Magnum Panel) enclosures have been specifically designed to combine all of the major components required for a high power renewable energy system - inverter/battery disconnect, AC overcurrent protection, grounding connections, and a full system inverter bypass switch as a convenient way to isolate the inverters for battery maintenance - into easy to install pre-wired enclosures. Designed for multiple inverter applications, the MP Series enclosures feature convenient front panel operation, and with the optional Router (ME-RTR), will allow you to easily set up, monitor, and operate up to four MS-PAE inverter/chargers together (must be identical models to parallel stack). In addition to saving time and money by providing a simple and convenient inverter installation, the MP enclosures ensure safety and reliability by providing a UL and CSA certified and code compliant system. Includes:
- Two 175ADC breakers
- Two dual 30A AC input breakers
- Two dual 30A AC output breakers
- Dual 125A AC bypass breaker
- 1000A/100mv DC shunt
- Inverter AC input/output wires
- Data cables rated for 120/240 volt circuits
- Two inverter hoods
- Router and charge controller bracket
Dimensions of AC enclosure: 18" x 13" x 6.75"
Dimensions of DC enclosure: 18" x 13" x 6.75"
Weight of AC enclosure: 44 lbs.
Weight of DC enclosure: 46 lbs.
User Manual Note: The manual is a large 28 MB file. It could take a few minutes or longer to completely download depending upon the speed of your internet connection.
